ZRQ-206 气液分离器

更新:14-10-29 10:30       点击:
产品介绍

产品简介  Product Introduction

        制冷循环系统中,当制冷剂回到压缩机前必须完全气化 。因此在制冷剂进入压缩机前必须将气态和液态分离,让气态制冷剂进入压缩机,才不会让压缩机导致 液积,液态制冷剂在器体内慢慢蒸发,待蒸发后才会进入压缩机。为了使系统中残存冷冻油回到压缩机 ,在气液分离器中的回气管底部设有回油孔,在系统中残存的冷冻油到了气液分离器中,会随气态制冷 剂一起回到压缩机中。有了气液分离器的保护,压缩机的寿命才会更持久,系统循环才会更正常。

        In circulatory system, the refrigerant must be convert became gas before returning to compressor. So it has to separate gas and liquid before the refrigerant enters into the compressor. And let the gas refrigerant enters into the compressor will not cause strike. The liquid refrigerant evaporate slowly in the vessel, then enter the compressor after evaporation. In order to make the residual refrigerant oil come back to compressor, there is no hole in the bottom of tube in Accumulator which may let the oil come back. When the residual refrigerant in the system come into Accumulator, it will go back to compressor with gas refrigerant. Because of the protection from Accumulator, The life time of compressor can be longer and the circulatory system can run better.

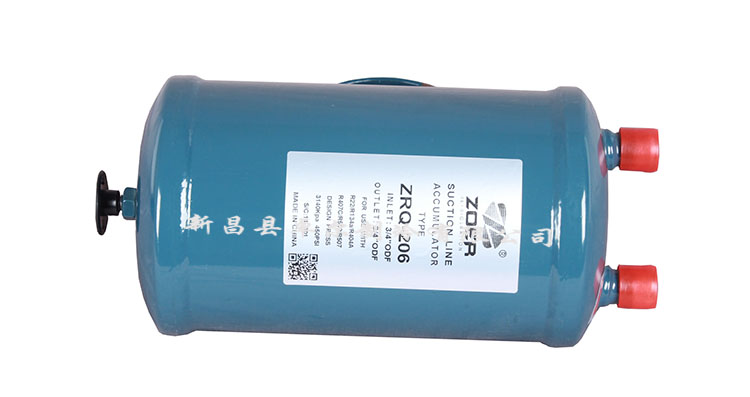

产品展示  Product Display





产品特点  Product Fedture


●"U"型弯管设计保证最大制冷剂流量和截获最少的油

"U" tube design keeps maximum refrigerant flow andminimum oil blocking

●"U"型弯管入口位于进口导向器的后面,防止液体进入压缩机并使之损坏

"U" tube Entrance is installed in the back of the inlet oriented pipe to prevent liquid refrigerant entering into compressor and damaging it

●节流小孔和系统容量相匹配以确保流入压缩机的液体制冷剂和油量最佳

Throttle hole matched will with system capacity assures optimum liquid refrigerant and oil that flow back to compressor



产品属性  Product Attribute



产品说明 Specifications




表面耐腐蚀的静电喷涂工艺,防止壳体外生锈

最大工作压力:3.5Mpa




命名方式

例如:ZRQ-206

Nomenclature:For Example ZRQ-206

ZRQ

20

6



Molecular Series

Model number

Connection
Size(in3/4" )





尺寸数据

Dimensional Data

气分尺寸

型号 Description

接管尺寸(in)

外形尺寸(mm)Dimensions

Connection Size

A
B
C
容量(L)volume

ZRQ-206

3/4

316

75
140
3.8
